Chrome Plated Stamped Steel Crossfoot Table Bases for Square and Round Restaurant Tables
36" x 36" Chrome Plated Stamped Steel Crossfoot Table Bases
Stamped Steel Chrome Restaurant Table Base Bottoms Will Not Crack Like Cast Iron.
4" Diameter Columns

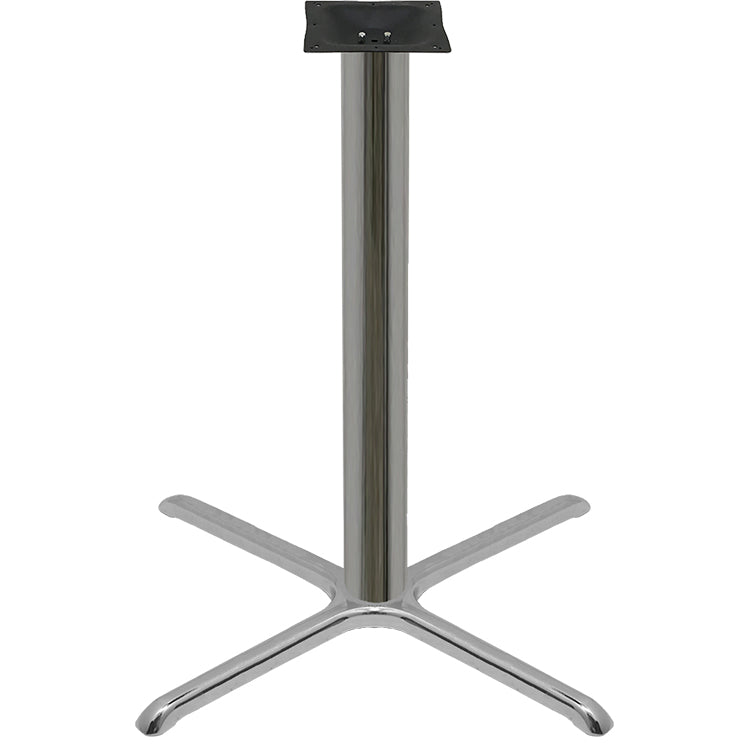

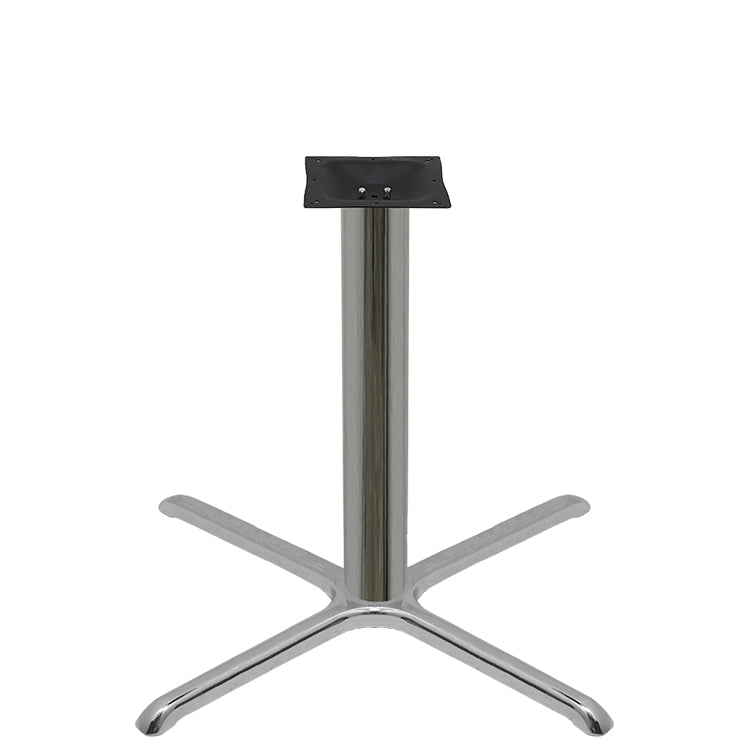

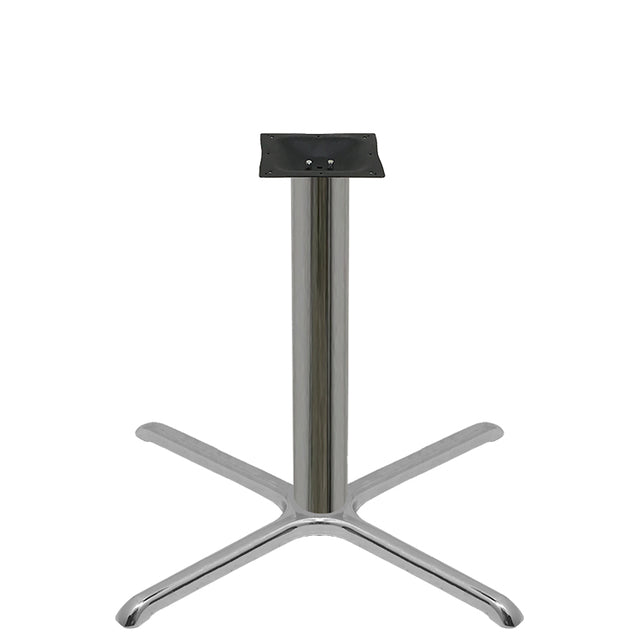

Available in Dining Height (28 ¾" High) and Bar Height (40 ¾" High)
( Finished O.A. Table Height Using 1 1/4" Thick Table Top Is Approx. 30" )
Table Bases are equipped with adjustable leveler glides
Steel Top Plate Spiders 11" X 11"
Additional Details:
- Easy three-piece construction for quick assembly (Spider to Tube; Tube/Spider to Foot)
- Spider attaches to table top with (8) 3/4″ – #10 screws
- The spider attaches to the tube by two bolts on a welded plate within the top of the tube. Those bolts go through matching holes in the spider and are secured with washers and lock nuts
- Tubes feature a welded anchor plate at the bottom of tube. The anchor plate also has a welded nut on back of anchor plate.
- A short bolt with both flat & lock washer is screwed through the foot and into the welded anchor plate.
- A short bolt with both flat & lock washer is screwed through the foot and into the welded anchor plate.
- Base bottoms feature welded glide tabs with hollow back – not possible with cast iron bases – drastically reducing the chances of having a bad tab for leveling glides
