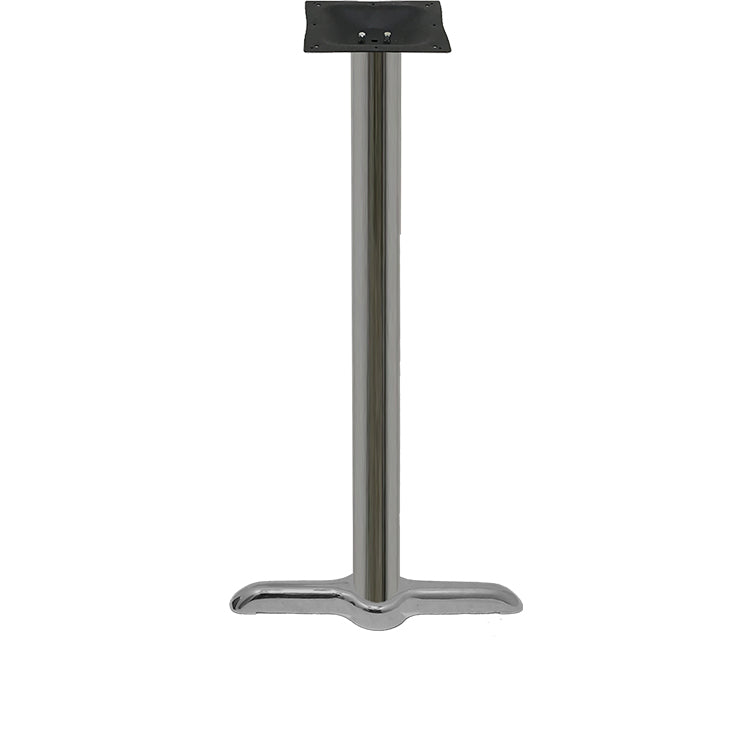

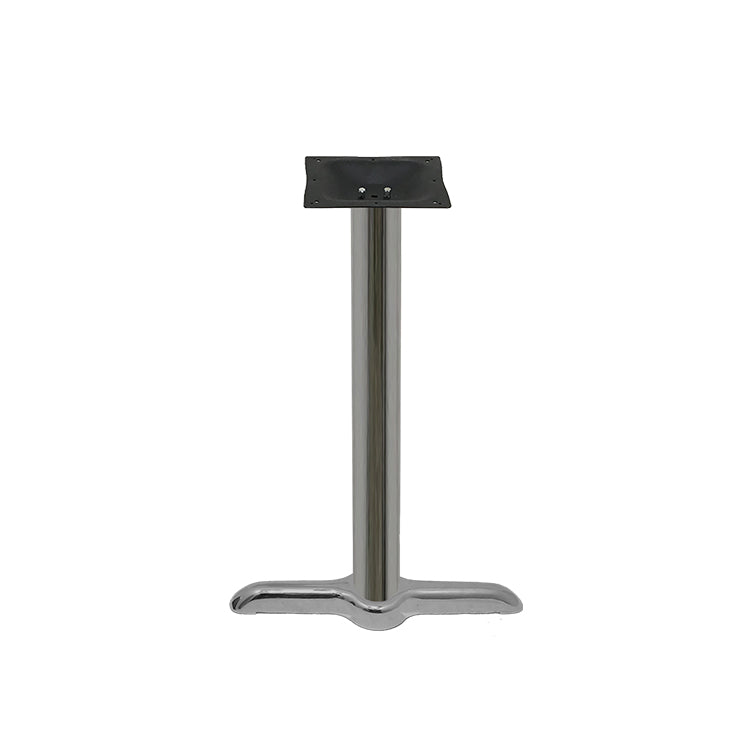

22" Chrome Plated Stamped Steel End Table Base
Chrome Plated Stamped Steel End Table Base
22" Chrome Plated Stamped Steel End Table Bases
Stamped Steel Bottoms with Steel Columns. Stamped Steel Restaurant Table Base Bottoms Will Not Crack Like Cast Iron.
3" Diameter Columns (Optional 4" Diameter columns are available)
Available in Dining Height (28 ¾" High) and Bar Height (40 ¾" High)
Table Bases are equipped with adjustable leveler glides
End Table Bases can be used for multiple table sizes such as large round and special shaped table tops
Additional Details:
- Easy three-piece construction for quick assembly (Spider to Tube; Tube/Spider to Foot)
- Spider attaches to table top with (8) 3/4″ – #10 screws
- The spider attaches to the tube by two bolts on a welded plate within the top of the tube. Those bolts go through matching holes in the spider and are secured with washers and lock nuts
- Tubes feature a welded anchor plate at the bottom of tube. The anchor plate also has a welded nut on back of anchor plate.
- A short bolt with both flat & lock washer is screwed through the foot and into the welded anchor plate.
- A short bolt with both flat & lock washer is screwed through the foot and into the welded anchor plate.
- Base bottoms feature welded glide tabs with hollow back – not possible with cast iron bases – drastically reducing the chances of having a bad tab for leveling glides
