Optimize your space with our sturdy Wall-Mounted Cantilever Table Supports, ideal for booth seating and commercial dining areas. Constructed from robust 1½" × 2" steel tubing and reinforced with angle iron, these supports mount securely to the wall, offering a sleek, leg-free tabletop area that enhances accessibility and facilitates cleaning underneath.
Only Available in Black in the Following Styles & Sizes:
Style A:
21" L - for tables 24" to 30" long
27.5" L - for tables 30" to 48" long
Style B:
20" L - for tables 24" to 30" long
33" L - for tables 30" to 48" long

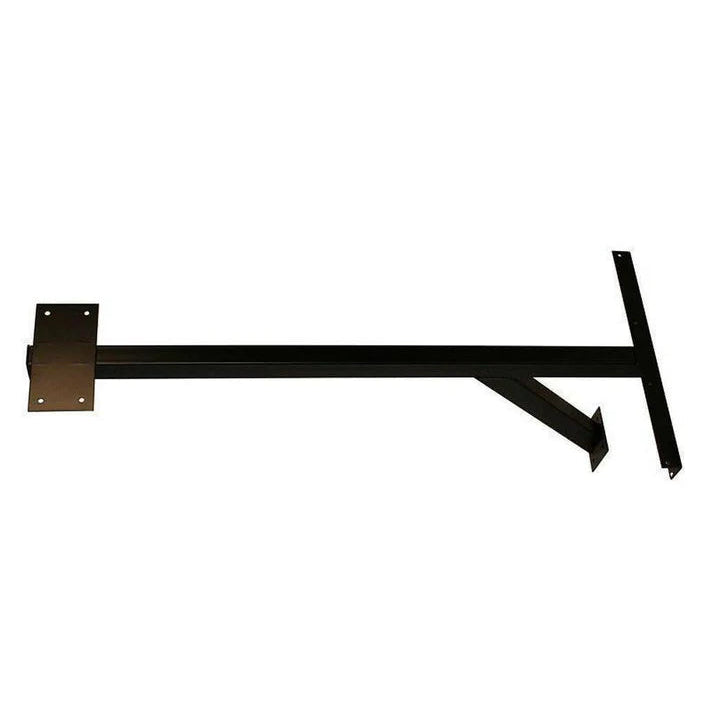

42" L - for tables 46" to 54" long
Style C:
48" L - for tables 54" to 60" long*

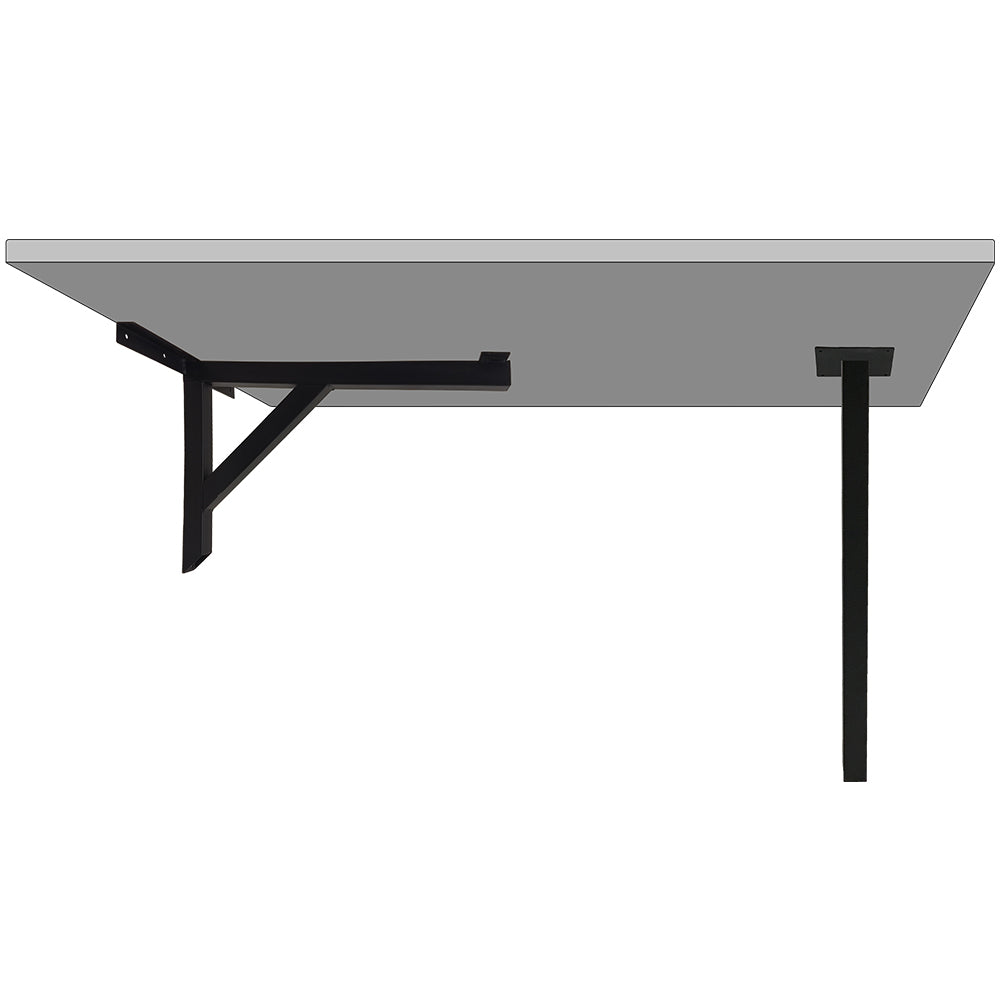

*Aisle Side Pin Leg Support or Bolt-Down Leg Recommended To Minimize Table Wobble.
Steel tubing is 1 1/2" X 2"
Angle iron is 1 1/2" ( vertical ) X 2" ( horizontal ) X 18" Long
Square steel wall mounting plate is 4" X 4"
Rectangular steel table mounting plate is 4" X 8"

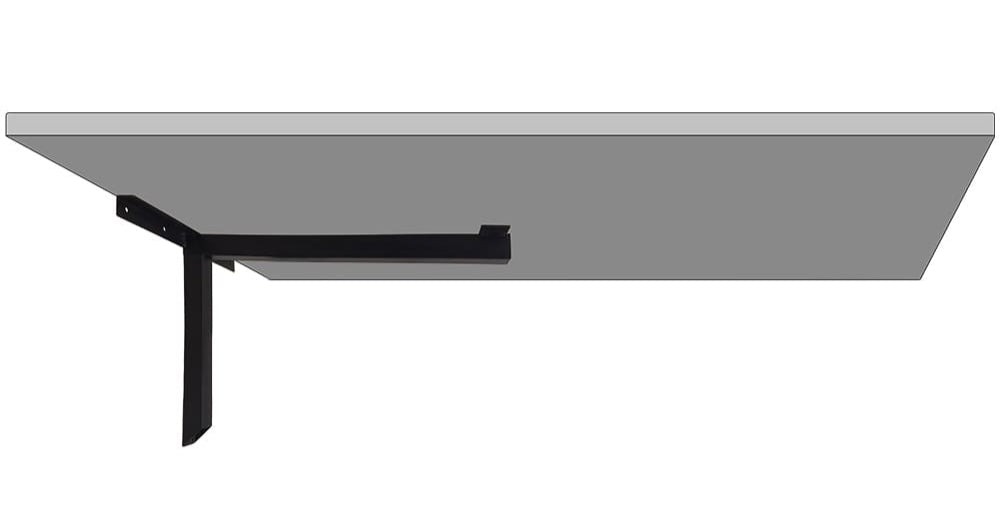

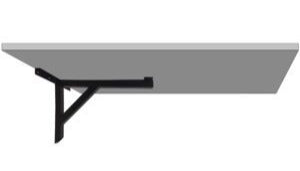

Restaurant booth table with cantilever support - Underside View

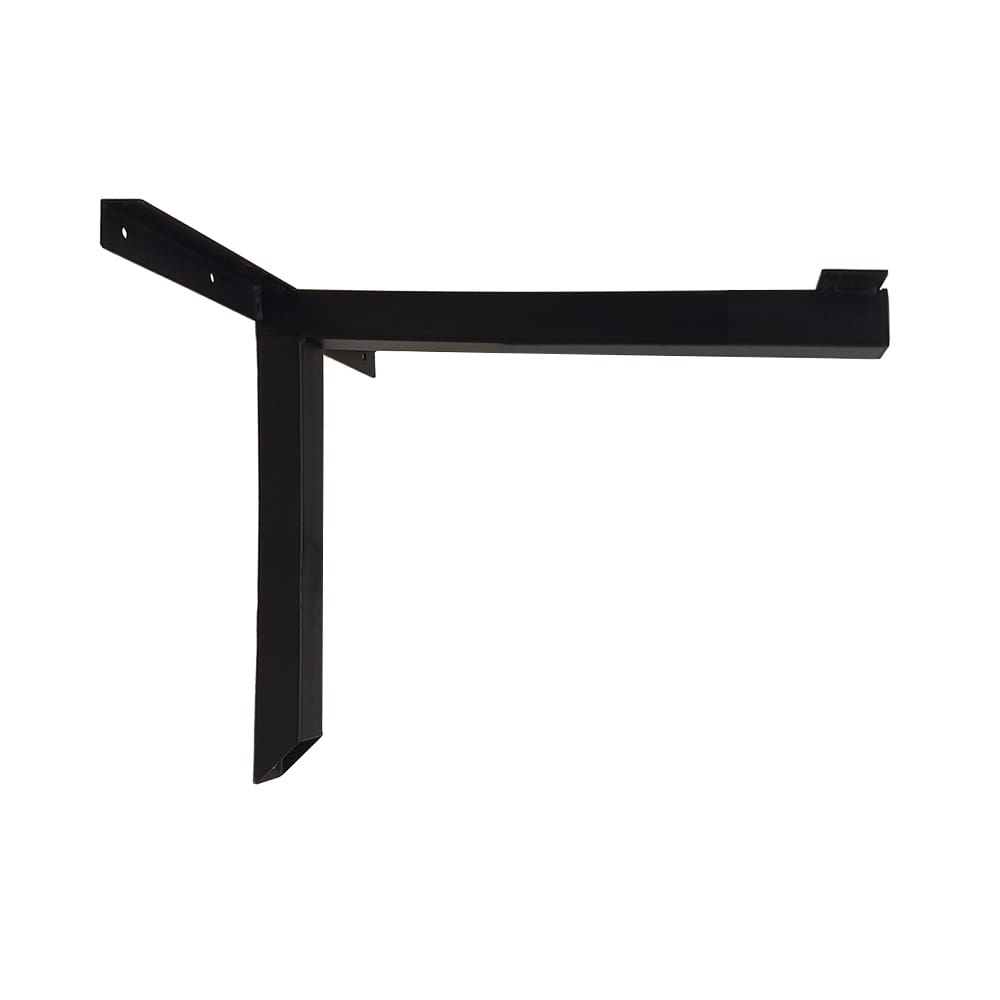

Cantilever Detail
Wall Mounted Cantilever Table Support Special Purpose Installation and Detail
