Soda Fountain Counter Stool Seat Heights

Bolt Down round seat counter stools dimension details and suggestions for reference
Counter Stools Install On Minimum 26 inch Centers Counter Stool Seat Height 30 Inch Without Footrest

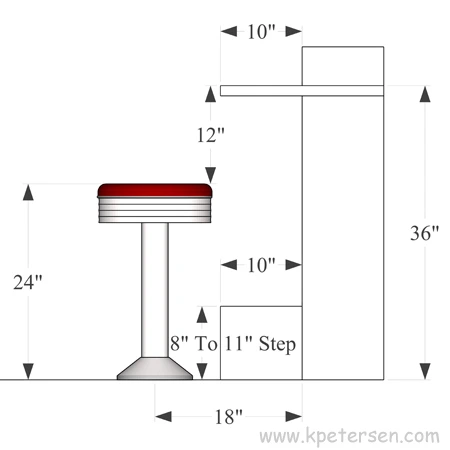

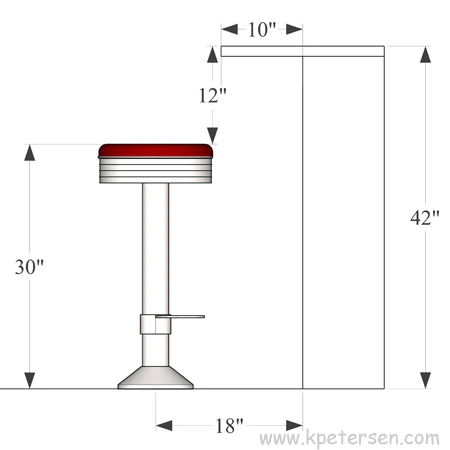

Counter Stool Seat Height 24 Inch Without Footrest Counter Stool Seat Height 30 Inch With Footrest

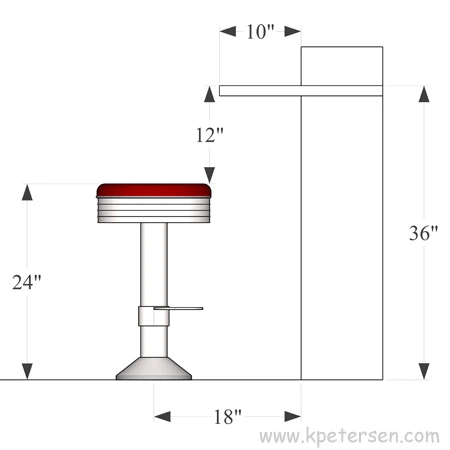

Counter Stool Seat Height 24 Inch With Footrest Counter Stool Seat Height 24 Inch With Footrest
Bolt Down counter stools with backs dimension details and suggestions for reference
Counter Stools With Backs Install On Minimum 31-32 inch Centers Counter Stool Seat Height 30 Inch With Back Without Footrest

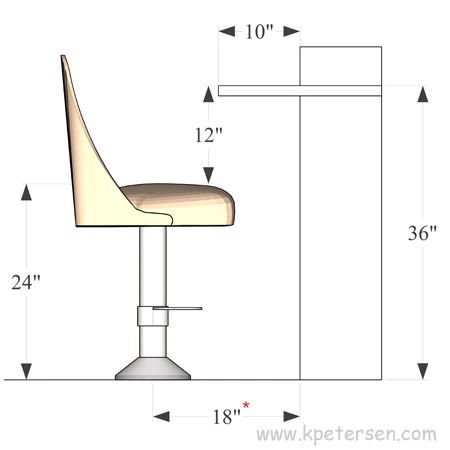

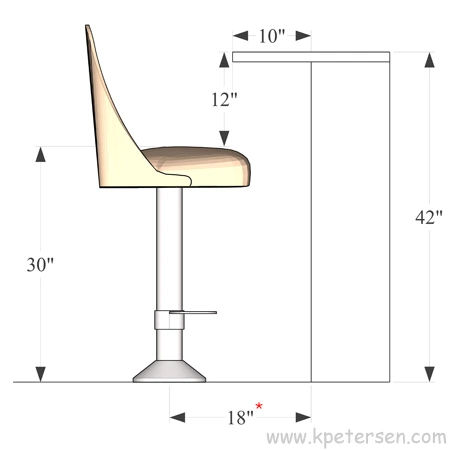

Counter Stool Seat Height 24 Inch With Back Without Footrest Counter Stool Seat Height 30 Inch With Back With Footrest

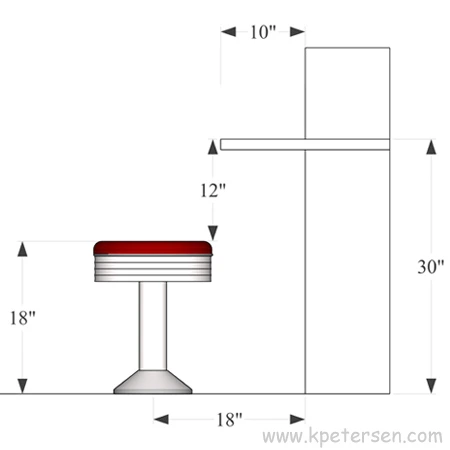

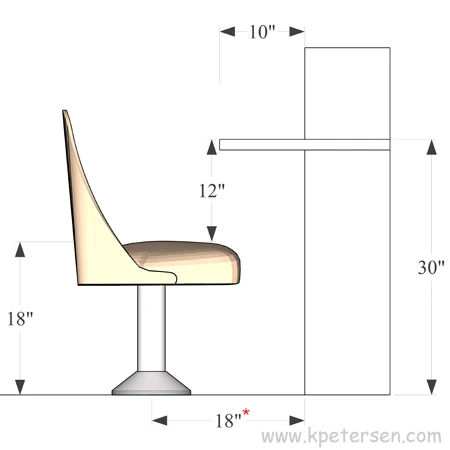

Counter Stool Seat Height 24 Inch With Back With Footrest Counter Stool Seat Height 18 Inch With Back Without Footrest

* Counter stool seats with backs can vary substantially in width and depth. Always confirm proper support post location before final floor attachment.
These drawings and photos are installation suggestions. They are not intended as substitutes for architectural drawings. Drawings are submitted as a confidential disclosure. All rights to reproduce them are expressly reserved. Drawings are not to be used in any way detrimental to Petersen Furniture interests. It is the customer's responsibility to verify critical dimensions and securely and safely perform installation.
