Wood Back Fast Food Counter Stools

THE ONLY PLACE TO SIT in the 21st Century Fast Food Restaurant. This is a thoughtfully designed and engineered steel with wood backrest counter stool with deluxe details like steel finial caps rather than the usual plastic.
Our floor mounted Wood Back design counter stools feature heavy duty made in U.S.A. commercial construction. Available with upholstered and beech veneer chair seats. The fountain stools below are made in standard seat heights of approx. 18", 25" and 30".
The 18" seat height is for 30" table height. The 25" seat height is for counters 36" high. ( A built-in step or footrail at the counter is recommended for the 25" seat height stool). The 30" seat height is for standard bar height which is 42".
Please request a quotation if you are considering a large order.

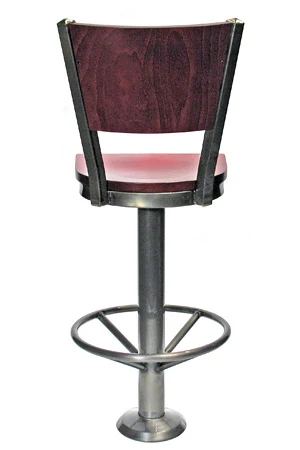

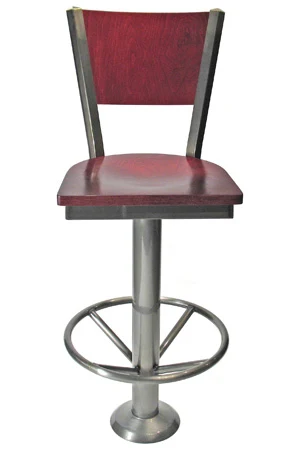

Wood Back Bolt Down Counter Stool Wood Seat Wood Back Bolt Down Counter Stool Wood Seat Rear View Wood Back Bolt Down Counter Stool Wood Seat Front View
Wood Back Bolt Down Counter Stool Installation

#504CST Wood Back Fast Food Counter Stools
Available with Upholstered Seats and Beech Veneer Seats.
Seat is approx. 17" Wide X 16" Deep
Steel Column is 3" Diameter
Steel Bottom is 6 1/2" Diameter X 1/4" Thick with four 1/2" holes for floor attachment.
( Floor attachment anchors not provided )
Stool is equipped with a spring return swivel.

8" Diameter Steel Escutcheon Cover Included.
19" Diameter Footrest option available.

Stool base and chair head frame finish available in many Standard Colors
including Clear Coat finish which reveals welding and burnishing marks on the steel frame.

Wood Back Soda Fountain Stool Upholstered Seat Option #504CST-U Wood Back Standard Upholstered Seat Pricing:
2 - 6 Call For Current Pricing | 7 - 10 Call For Current Pricing | 11 + Call for quantity quote!

Wood Back Soda Fountain Stool Wood Seat Option #504CST-W Wood Back Beech Veneer Seat Pricing:
2 - 6 Call For Current Pricing | 7 - 10 Call For Current Pricing | 11 + Call for quantity quote!

Footrest Option - Call For Current Pricing
Specify 18", 25", 30" Seat Height. Upholstered Seats May Add Slightly To Specified Height.

Soda Fountain Counter Stool Footrest Detail Soda Fountain Counter Stool Escutcheon Cover Detail
Counter Stool Welded 19" Diam. Footrest and 8" Diam. Sliding Escutcheon Cover Details.
Bolt-Down Soda Fountain Base Floor Attachment Drawing
Base Floor Attachment Drawing.

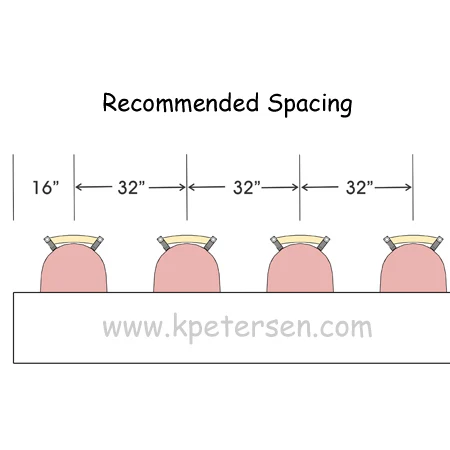

Bolt Down Wood Back Soda Fountain Counter Stool Recommended Spacing Bolt Down Wood Back Soda Fountain Counter Stool 30 Inch Seat Height with Footrest
We Suggest Center To Center Dimensions Of 32" Especially When Using 19" Diam. Footrests

Wood Back Bolt Down Counter Stool Installation 18 Inch Seat Height

Standard Wood Seat Finishes
Natural Clear Finish On Beech Wood Species Mahogany Stain On Beech Wood Species Walnut Stain On Beech Wood Species Black On Beech Wood Species

Many upholstery material selections available
If you are doing critical color matching please request free vinyl upholstery samples.
