Dual Curved Tempered Aluminum Backrest
Support Deluxe Bolt Down Counter Stools

THE ONLY PLACE TO SIT in the the Coffee Shop, Pancake House and Family Restaurant. These hard working deluxe floor mounted stools are also used in museum exhibits and as store fixture seating in customer waiting areas, electronic media centers, automotive and tire centers and eyeglass sales and fitting salons.
Deluxe counter stool seats feature heavy duty hardwood frame construction, dual curved tempered aluminum backrest supports and expert upholstery work. All stools are equipped with spring action return swivels.
Four decorative upholstered back styles. Diamond Tufted, Horizontal Channel Back, Vertical Channel Back and Plain Back.
Deluxe counter stools are available in a wide variety of of upholstery materials including Cracked Ice Vinyl and Naugahyde Zodiac Glitter Vinyl. Click here for bolt down counter stool pricing. Please request a quotation if you are considering a large order. All counter stools shown can be shipped UPS in small quantities.

Dual Curved Tempered Aluminum Backrest Support Deluxe Floor Mounted Counter Stools White Upholstery Installation

Dual Curved Tempered Aluminum Backrest Support Deluxe Bolt Down Counter Stools:
Removable lift off seat is approx. 15 1/2" W. X 15 1/2" D. Lift off seats facilitate installation, swivel, floor attachment maintenance and upholstery repair.
All seat styles are equipped with spring action return swivels.
Chrome column and chrome bottom bell are reinforced with cast iron.
16 Gauge Chrome Column is 3 1/4" Diameter
Bottom "Bell" is 9 1/4" Diameter
Specify counter stool seat heights in any height between 12" and 30" (in one inch increments).
All counter stools available with optional cast aluminum footrest.
Custom, made to order with your choice of upholstery material in the United States.

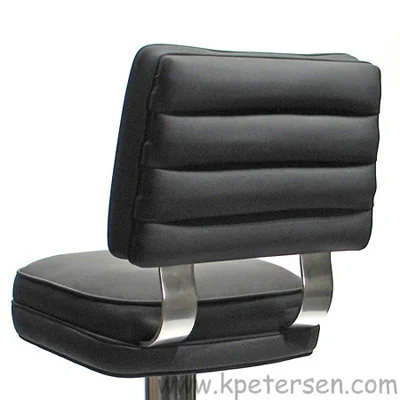

Horizontal Channel Back, Dual Curved Tempered Aluminum Backrest Support Deluxe Floor Mounted Counter Stool Detail 1 Horizontal Channel Back, Dual Curved Tempered Aluminum Backrest Support Deluxe Floor Mounted Counter Stool Rear View Detail
 # P462 Horizontal Channel Back, Dual Curved Tempered Aluminum Backrest Support

Dual Curved Tempered Aluminum Backrest Support Deluxe Floor Mounted Counter Stool Plain Back Dual Curved Tempered Aluminum Backrest Support Deluxe Floor Mounted Counter Stool Diamond Tufted Button Back Dual Curved Tempered Aluminum Backrest Support Deluxe Floor Mounted Counter Stool Vertical Channel Back
Plain Back, Diamond Tufted With Buttons Back And Vertical Channel Back Counter Stools Are All Standard Models.

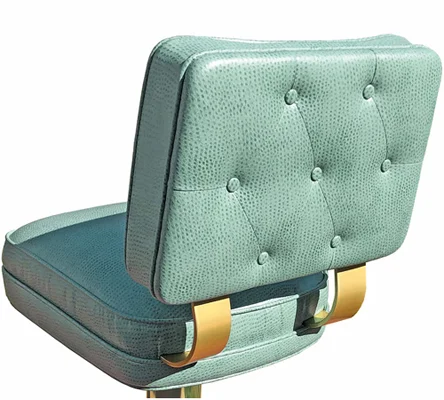

Brass Option Dual Curved Tempered Aluminum Backrest Support Deluxe Floor Mounted Counter Stool Diamond Tufted Button Back Brass Option Dual Curved Tempered Aluminum Backrest Support Deluxe Floor Mounted Counter Stool Diamond Tufted Button Back
 Brass Plated And Polished Column And Anodized Brass Seat Support Options

Dual Curved Tempered Aluminum Backrest Support Deluxe Floor Mounted Counter Stool Plain Back Installation

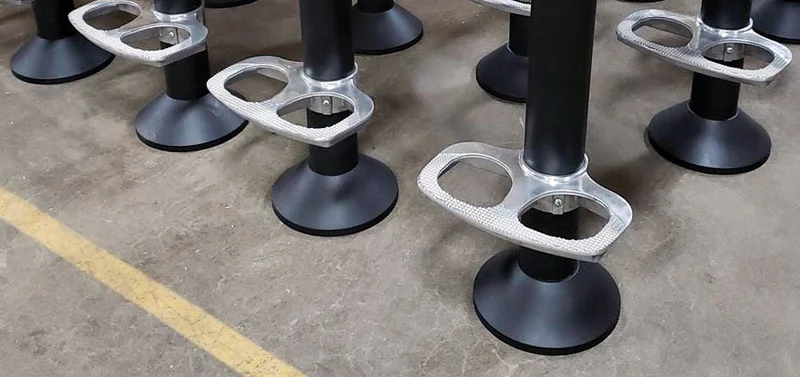

Bolt Down Counter Stool Black Column, Aluminum Footrest
Black Column, Aluminum Footrest Detail

See Floor Attachments Soda Fountain Stool Floor Attachment Hardware

See Suggested Counter Height and Counter Stool Seat Heights

See Soda Fountain Counter Stool Layout Suggestions and Footrest Alternatives

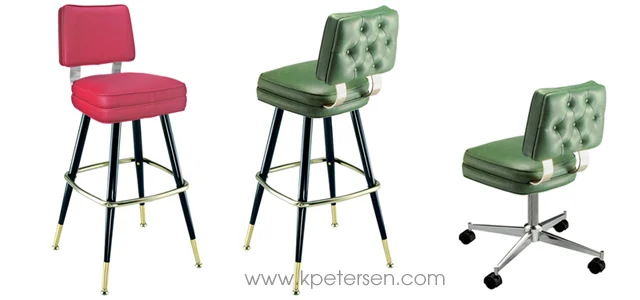

Free Standing Bar Stool And Chair Versions Of These Popular Seat Styles
Coming Soon

Dual Curved Tempered Aluminum Backrest Support Deluxe Bolt Down And Free Standing Stools Drawings

Dual Curved Tempered Aluminum Backrest Support Deluxe Free Standing Chairs And Stools
Dual Curved Tempered Aluminum Backrest Support Deluxe Free Standing Chairs And Stools Photos
